Name: SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Sensor sc4aj
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > sensor da qualidade de água >

SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃

Cell constant 0.02 cm-1 Conductivity Sensor

Cell constant 0.1 cm-1 SC4AJ

Temperature Range 0 to 110℃ Water Quality Sensor

Marca:

Yokogawa

Número do modelo:

Sensor sc4aj

Contacte-nos

Solicite um orçamento

SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃

Detalhes do produto

Princípio de medição:

Sistema de dois eletrodos

Constante de células:

0,02 cm-1, 0,1cm-1

Faixa de temperatura:

0 a 110 ℃ (para eletrodo)

Esterilização para eletrodo:

135 ℃ (275 ℉), dentro de 30 minutos em esterilização a vapor

Faixa de pressão:

0 a 1 MPa (para eletrodo)

Destacar:

Cell constant 0.02 cm-1 Conductivity Sensor

Cell constant 0.1 cm-1 SC4AJ

Temperature Range 0 to 110℃ Water Quality Sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenha o melhor preço

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenha o melhor preço

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenha o melhor preço

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

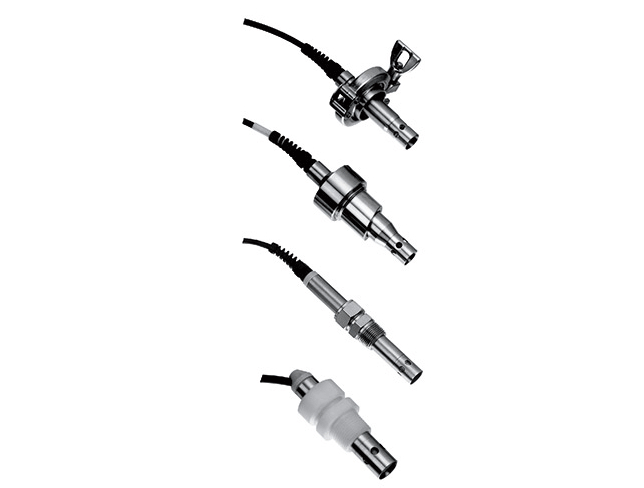

Conductivity Sensor SC4AJ

Yokogawa has been supplying superior on-line analyzers for monitoring or controlling the conductivity of liquid solutions. Our product line includes the FLXA402 four-wire conductivity/resistivity converter, along with the FLXA202 and FLXA21 two-wire conductivity/resistivity transmitters, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC4AJ conductivity sensor features a compact, convenient design suitable for diverse applications including boiler water monitoring, hydroponics conductivity measurement, and ultrapure water resistivity measurement in semiconductor, pharmaceutical, food, and power industries.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	Two-electrode system
Cell Constant	0.02 cm^-1, 0.1 cm^-1
Measuring Range	0 - 0.5 to 0 - 200 μS/cm (Cell constant: 0.02 cm^-1, with SC450G, SC202) 0 - 100 μS/cm to 0 - 1 mS/cm (Cell constant: 0.02 cm^-1, with SC100) 0 - 5 μS/cm to 0 - 1 mS/cm (Cell constant: 0.1 cm^-1, with SC450G, SC202) 0 - 500 μS/cm to 0 - 5 mS/cm (Cell constant: 0.1 cm^-1, with SC100; Material: Titanium)
Temperature Range	0 to 110℃ (For electrode)
Sterilization for Electrode	135℃ (275℉), within 30 minutes in Steam Sterilization
Pressure Range	0 to 1 MPa (For electrode)
Sample Solution Condition	Although flow rate is not limited in measurement, air bubbles should not be mixed in the sample solutions to obtain correct measured values.
Temperature Sensor	Pt1000
Weight	Sensors: Adapter mounting type (SC4AJ-S-AD-09-002-05): approx. 450 g Adapter mounting type (SC4AJ-S-AD-15-002-05): approx. 520 g Welding socket type (SC4AJ-S-SA-NN-002-05): approx. 670 g 5" welding clamp type (SC4AJ-S-SB-NN-002-05): approx. 550 g 2" welding clamp type (SC4AJ-S-SC-NN-002-05): approx. 670 g Adapters: 3/4" stainless steel adapter (/PS): approx. 110 g 3/4" PVDF adapter (/PF): approx. 35 g Straight welding socket (/SA1): approx. 300 g Angle welding socket 15 (/SA2): approx. 320 g Welding clamp 1" (/SB1): approx. 330 g Welding clamp 1.5" (/SB2): approx. 305 g Welding clamp 2" (/SC1): approx. 350 g
Process Connection	Adapter mounting, welding socket, welding clamp
