Name: SITRANS LCS050
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LCS050
Price: 1,000.10 USD
Availability: InStock

Para casa > produtos > sensor ultrassônico do transdutor >

SITRANS LCS050

SITRANS LCS050 water sensor

water quality sensor with warranty

industrial water quality sensor

Marca:

SIEMENS

Número do modelo:

LCS050

Contacte-nos

Solicite um orçamento

Detalhes do produto

Princípio de medição:

Detecção de nível de capacitância

Saída de alarme:

Transistor (PNP/NPN) IO-Link conforme. conforme IEC 61131-9

Modo de segurança:

Min. ou máx.

Histerese:

Aprox. 1 mm (0,04 polegadas)

Temperatura ambiente:

-40… +70 °C (‑40… +158 °F)

Destacar:

SITRANS LCS050 water sensor

water quality sensor with warranty

industrial water quality sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Pointek CLS300 - Standard

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

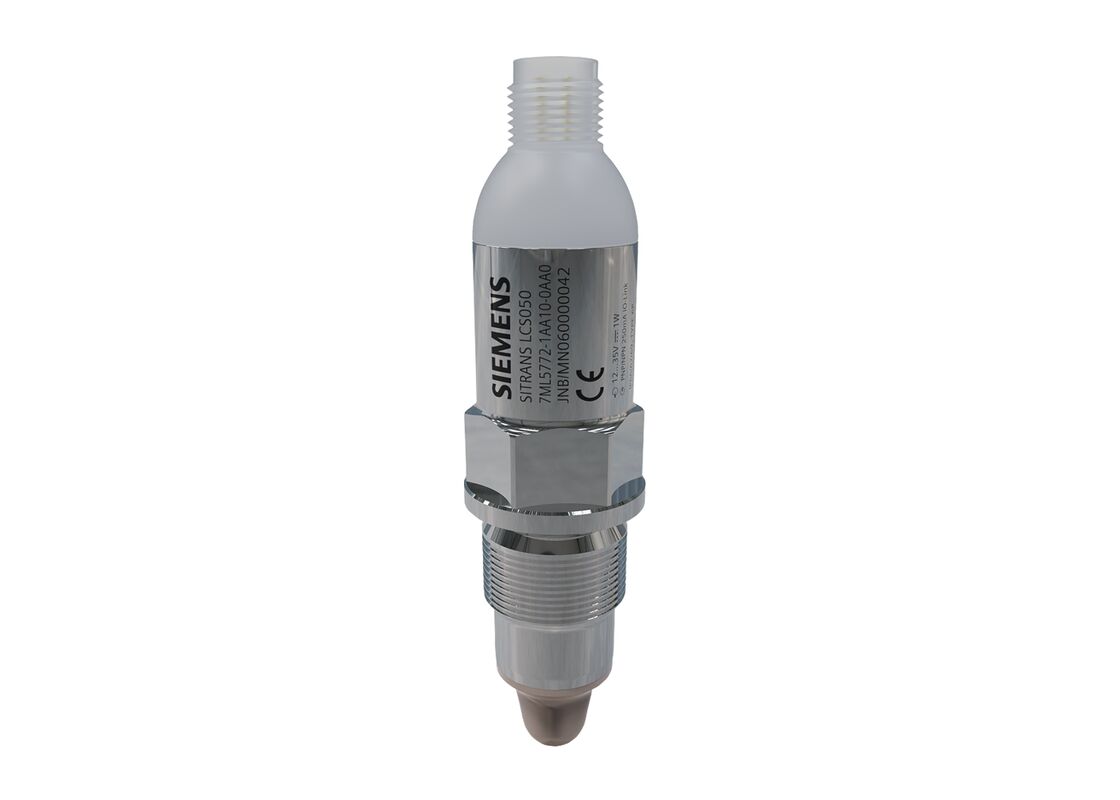

SITRANS LCS050

SITRANS LCS050 is an ultra-compact capacitance switch for point level detection in constricted spaces, water-based liquids, slurries, and foam.

7ML5772-.....-....

Benefits

Easy installation with no need for adjustment
Low maintenance with no moving parts
Highly visible 360-degree status indication
M12 connector for ease of installation
IO-Link communication option for advanced monitoring and configuration

Application

The SITRANS LCS050's ultra-compact design, short insertion length of 15 mm (0.59 inch), and versatility in various applications in vessels or pipes makes it an excellent replacement for traditional point level switches.

Its advanced alternating capacitance field at the sensor tip ensures material detection based on changes in capacitance, providing repeatable performance. The PEEK probe is chemically resistant with an effective process operating temperature range from -20 to +100 °C (-4 to +212 °F) and supports sterilization in place at 135 °C (275 °F) for up to 1 hour. The product design ensures reliability in vibrating environments such as agitated tanks up to 5 g.

Key Applications

Water-based liquids with >10% water (alcohols, acids, cleaning agents)
Slurries and foam for point level detection
Overfill and dry run protection
Small pipes due to its compact design

Configuration

Technical Specifications

Parameter	Specification
Measuring principle	Capacitance level detection
Measured variable	Change in picoFarad (pF)
Output signal	Transistor (PNP/NPN) IO-Link acc. to IEC 61131-9
Fail-safe mode	Min. or max.
Hysteresis	Approx. 1 mm (0.04 inch)
Location	Indoor/outdoor
Ambient temperature	-40 to +70 °C (-40 to +158 °F)
Storage temperature	-40 to +80 °C (-40 to +176 °F)
Installation category	I
Pollution degree	4
Relative dielectric constant εr	Min. 2
Process temperature	-20 to +100 °C (-4 to +212 °F) up to 1 hour, 135 °C (275 °F)
Pressure (vessel)	-1 to 25 bar/-100 to 2,500 kPa (-14.5 to 363 psig)
Degree of protection (M12x1 plug)	IP66/IP67/IP69
Design	Enclosure/integral cable version
Body material	316L and plastic (polycarbonate)
Sensor length	15 mm (0.59 inch)
Process connection material	Connection: 316L stainless steel Device seal: FKM (hygienic version EPDM) Sensor tip: PEEK
Connection (Enclosure version)	M12 x 1 plug
Process connection	Pipe thread, cylindrical (DIN 3852-A) G½, G¾, G1 Pipe thread, conical (ASME B1.20.1) ½ NPT, ¾ NPT, 1 NPT Metric fine thread, cylindrical M24 x 1.5
Power supply	12 to 35 V DC
Certificates and approvals	General: CE, UKCA
