Name: High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Sensor SC42/SX42
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > sensor da qualidade de água >

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

316 Stainless Steel Conductivity Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

Marca:

Yokogawa

Número do modelo:

Sensor SC42/SX42

Contacte-nos

Solicite um orçamento

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

Detalhes do produto

Constantes de célula:

0,1/cm; 1.0/cm

Elementos de temperatura:

PT1000

Materiais de construção:

316 aço inoxidável

Design Sytle:

2-eletrodo

Destacar:

316 Stainless Steel Conductivity Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenha o melhor preço

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenha o melhor preço

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenha o melhor preço

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

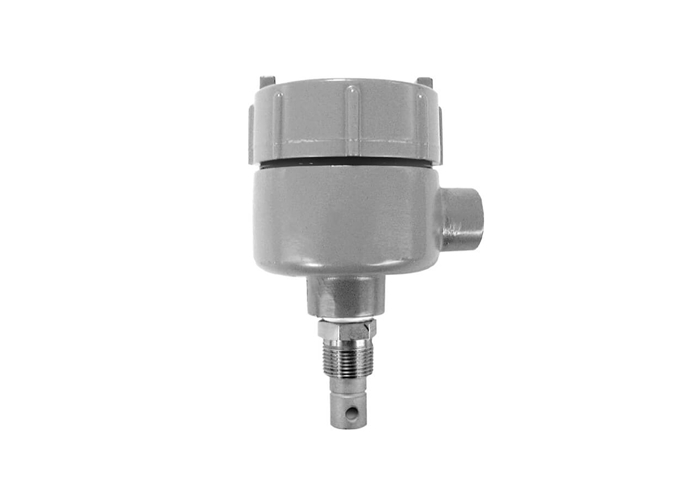

High Pressure/High Temperature Conductivity Sensor SC42/SX42

High Pressure - High Temperature Contacting sensor primarily designed for Boiler Blowdown and Condensate Leak detection applications. These conductivity cells have extremely high temperature and pressure ratings: the threaded types can handle 16 bar at 200°C and the flanged types can handle 40 bar at 250°C.

Product Selection

Specification	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore (Flanged)
Model Code	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore
Cell Constants	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm
Ranges	0.4-2,000 µS/cm; 4.0-5,000 µ/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	7 bar/100 PSIG	16 bar/228 PSIG	40 bar/570 PSIG
Maximum Temperature	100°C/212°F	up to 200°C	up to 250°C
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp	1" NPT	2" 600lb ANSI Flange
Integral Cable	NO	NO	NO
Materials Of Construction	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Design Style	2-Electrode	2-Electrode	2-Electrode

Key Features

Designed for high-pressure, high-temperature applications
Ideal for boiler blowdown and condensate leak detection
Available in small bore and large bore configurations
Multiple installation connection options
Constructed from durable 316 stainless steel
2-electrode design for reliable conductivity measurement
