Name: Non-reagent Type Free Available Chlorine Sensor with Rotating Electrode for Continuous Online Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FC800D
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > sensor da qualidade de água >

Non-reagent Type Free Available Chlorine Sensor with Rotating Electrode for Continuous Online Measurement

Non-reagent Type Chlorine Analyzer

Rotating Electrode FC800D Sensor

Continuous Online Measurement Free Available Chlorine Sensor

Marca:

Yokogawa

Número do modelo:

FC800D

Contacte-nos

Solicite um orçamento

Non-reagent Type Free Available Chlorine Sensor with Rotating Electrode for Continuous Online Measurement

Detalhes do produto

Temperatura:

0 a 50 ° C (a compensação de temperatura é eficaz em 0 a 40 ° C)

Sistema de medição:

Método amperométrico (método polarográfico) usando eletrodo rotativo

Taxa de fluxo:

0,1- 2,5 l/min

Pressão:

1-150 KPa

Fonte de energia:

100 a 240 V DC, 50/60 Hz

Destacar:

Non-reagent Type Chlorine Analyzer

Rotating Electrode FC800D Sensor

Continuous Online Measurement Free Available Chlorine Sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenha o melhor preço

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenha o melhor preço

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenha o melhor preço

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

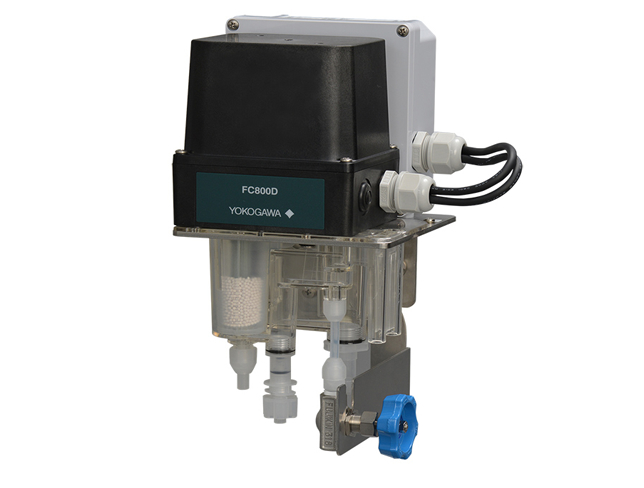

Non-reagent Type Free Available Chlorine Sensor Unit FC800D

Providing reliable chlorine measurements in Water Treatment Plants since 1959
No.1 Process analyzer supplier to Japanese market*

The FC800D non-reagent free available chlorine analyzer adopts the polarographic method, featuring a unique rotating electrode for continuous online measurement of free available chlorine concentration.

Key Benefits

Reliable Chlorine monitoring and minimized Chlorine injection
Continuous automatic cleaning reduces maintenance time
Remote maintenance capabilities for efficient process management

As part of the SENCOM4.0 platform family, the FC800D can connect to the FLXA402T. The integrated smart unit provides enhanced operational insights.

Ideal for water distribution measurements at pumping stations, water delivery points, schools, and public facilities.

*Based on a Yokogawa survey in 2019

Features

Amperometric measurement of free chlorine (polarographic method)
Continuous measurement without reagents
Unique rotating electrode method keeps sensor clean
Modularized motor unit and diagnostics simplify maintenance
Multiple calibration options: Manual, Auto, 2-point correction
Remote range switching capability

Configuration

Continuous automatic cleaning with beads provides contamination-resistant, stable measurement while reducing maintenance time.

Smart unit: Built-in Main board
Electrode Unit: Built-in Motor, Rotating contact
Beads Case: Houses cleaning beads
Needle valve for flow rate adjustment
Rotating electrode: Keeps surface polished and contaminant-free
Reference electrode: Includes temperature sensor for compensation

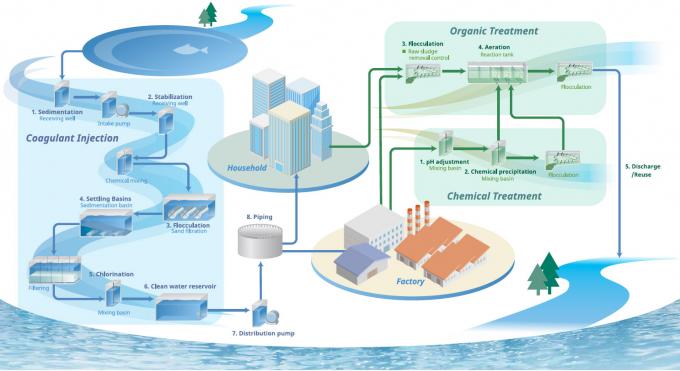

Applications

Each process at treatment plant: from reservoir to treated water, distribution system

Water Purification Treatment
Stabilization
Flocculation
Settling Basins
Chlorination
Clean water reservoir
Distributing pump
Distribution tank & Piping

Specifications

Measured Object	Free chlorine in tap water
Measuring System	Amperometric method (Polarographic method) using rotating electrode
Measuring Range	Free chlorine 0-1 to 0-3 mg/L(-F1) Combined chlorine insensitive version 0-1 to 0-3 mg/L(-C1) Free chlorine 0-5 mg/L (-F2) () Free chlorine 0-10 mg/L(-F3) () () For "-F2" and "-F3", please refer to the General Specifications*
Sample Condition (-F1, -C1)	Temperature: 0 to 50°C (compensation effective 0-40°C) pH: 6.5 to 7.5 (6.0-8.0 at 1mg/L(-F1)) Conductivity: 100-300 μS/cm (100-500 μS/cm at 1mg/L(-F1)) Flow Rate: 0.1-2.5 L/min Pressure: 1-150 kPa SS (Suspended Solid): under 10 mg/L
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Avoid direct sunlight.)

Performance (-F1 and -C1)

Linearity	±5% of reading or ±0.05mg/L whichever is greater
Repeatability	±1% of reading or ±0.01mg/L whichever is greater
For "-F2" and "-F3", please refer to the General Specifications
