Name: WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: WE420
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > sensor da qualidade de água >

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Ion Selective Electrode Sodium Analyzer

Reference Electrode Water Quality Sensor

Online Continuous Measurement Sodium Analyzer

Marca:

Yokogawa

Número do modelo:

WE420

Contacte-nos

Solicite um orçamento

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Detalhes do produto

Destacar:

Ion Selective Electrode Sodium Analyzer

Reference Electrode Water Quality Sensor

Online Continuous Measurement Sodium Analyzer

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenha o melhor preço

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenha o melhor preço

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenha o melhor preço

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

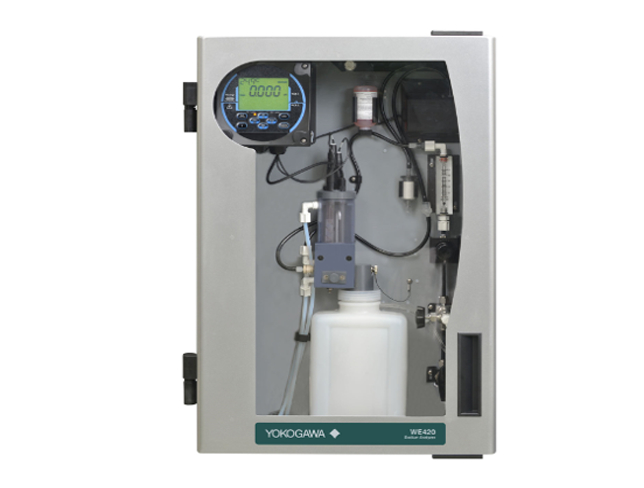

WE420 Sodium Analyzer

The WE420 Sodium Analyzer is an online continuous analyzer that uses an ion selective electrode and reference electrode to measure sodium concentration. This instrument provides critical monitoring for water and steam quality, serving as an early indicator of condensate leakage and potential turbine corrosion. With turbine corrosion repairs costing up to $30 billion annually, sodium monitoring helps reduce power generation, transmission, and distribution costs.

Ideal for power generation water applications including:

Feedwater systems
Boiler water
Deaerator inlet/outlet
Condensate discharge
Economizer inlet

Key Features

Process Guard

Calibration utilizes the online process sample with Double Known Addition for low range standards, ensuring the most accurate calibration and online measurement readings.

Expert Guide

The WE420 maximizes uptime with simple step-by-step scrolling instructions for setup, including calibration, operation, and diagnostics menus. The large backlit display provides clear visibility of measurements from any distance, even in low-light conditions.

Reduced Maintenance

The WE420 minimizes operator time and maintenance requirements by eliminating complicated moving parts or pumps that typically need frequent attention. Its efficient reagent consumption extends usage up to three months.

The ion selective sensor requires only quick etching in a low-dilution hydrofluoric acid (HF) sample - less concentrated than prescription toothpaste - unlike other units that need thorough soaking in high sodium concentrations followed by pure water rinsing.

Advanced Flexibility

Users can select from three different reagents to meet specific application requirements and environmental compliance standards.

The Importance of Sodium Measurement

Sodium is always present with highly corrosive elements like chlorides, sulfates, and hydroxide. At high pressures and temperatures, sodium becomes readily soluble in steam, potentially causing:

Stress corrosion cracking of superheater tubes
Turbine deposits

Sodium ions are the first to indicate exhaustion and leakages in reactions, making them particularly valuable for detecting contamination in condenser cooling water and preventing boiler water contamination.
