Name: TDLAS200B Series Laser Methane Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS200B
Price: 72.00 USD
Availability: InStock

Para casa > produtos > Sensor Detector de Gás >

TDLAS200B Series Laser Methane Sensor

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Lugar de origem:

China

Marca:

KACISE

Certificação:

Número do modelo:

TDLAS200B

Contacte-nos

Solicite um orçamento

Detalhes do produto

Volume:

53 ml

Faixa de medição:

0~5000ppm,0-10000ppm

Objeto de detecção:

Metano (CH4)

Princípio de medição:

Espectro de absorção do laser (TDLAS)

Limite de detecção estática:

0,5ppm@25℃ 5SPS (valor típico, entre em contato conosco para obter detalhes)

Tempo de resposta mais rápido:

90s

Destacar:

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Termos de pagamento e envio

Quantidade de ordem mínima

1PCS

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Vídeo

Sensor de metano a laser de calibração automática TDLAS200

Obtenha o melhor preço

Vídeo

TDLAS200B Series Laser Methane Sensor

Obtenha o melhor preço

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

Obtenha o melhor preço

Sensor de metano a laser de alta sensibilidade TDLAS200

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

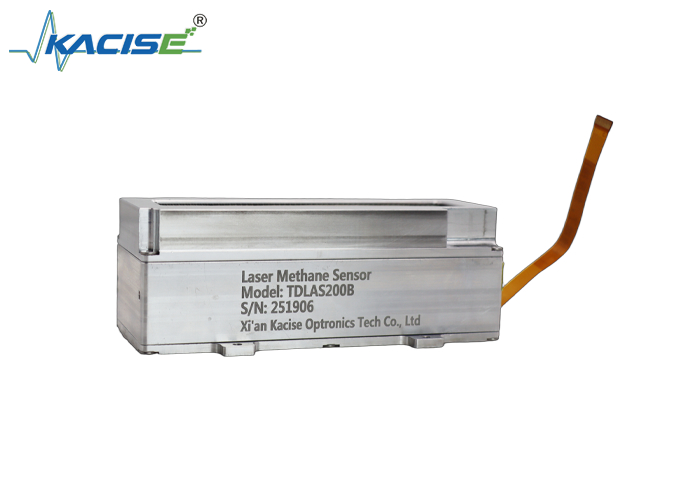

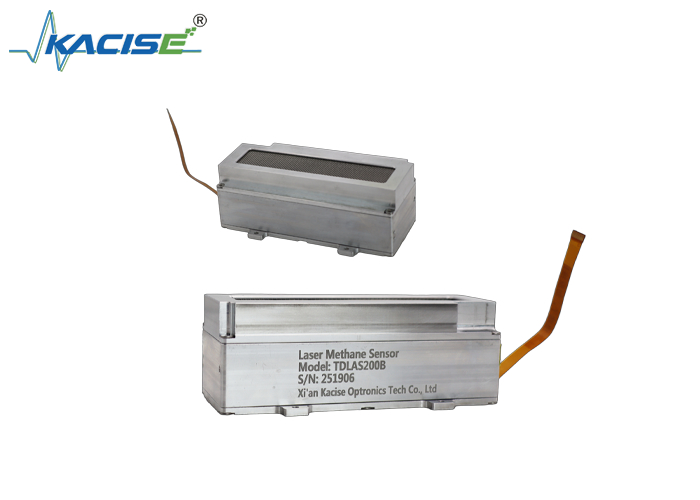

TDLAS200B Series Laser Methane Sensor

Introduction

The TDLAS201 laser gas telemetry module utilizes laser absorption spectroscopy technology. It emits a specific wavelength laser beam to detect target gas presence within the optical path range, accurately measuring gas concentration.

Key Features

High sensitivity with exclusive response to target gas
Built-in reference cell for automatic calibration
Easy integration with digital interface providing direct status and concentration output

Measuring Principle

Molecular absorption spectrum: Methane molecules absorb light at specific wavelengths.

Beer-Lambert's law: Light absorption by methane gas is proportional to gas thickness and concentration.

This technology uses wavelength-specific laser beams to measure methane concentration through light attenuation analysis, with unique methane selectivity. Multiple reflection detection cells enhance sensitivity by allowing repeated laser passes through the measured gas.

Technical Specifications

Parameter	Specification
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃ 5SPS (typical value)
Volume	53ml
Fastest response time	90s
Measurement range	0-5000ppm, 0-10000ppm
Measurement deviation	0-200 ppm: ±2 ppm 200-1000 ppm: ±1% 1000-5000 ppm: ±2% 5000-10000 ppm: ±3%
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 6W (max) Recommended 12V 1A
Dimensions	1155940mm
Gas inlet/outlet port	Pagoda direct M-5AU-4

Detection Module Composition

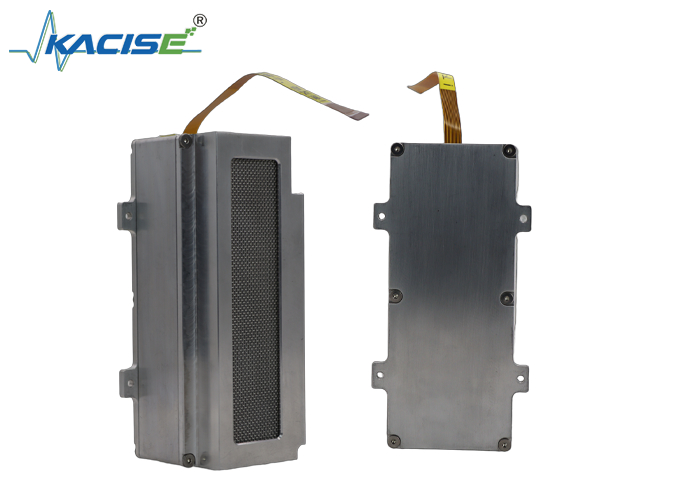

TDLAS200B (Diffusion) detection module main unit measures 115*59*40mm (excluding cables and gas connectors).

For detailed specifications or custom requirements, please contact our technical team.
