Name: KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMPW520
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > sensor da qualidade de água >

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

7 inch touch screen display Water Quality Analyzer

6-channel relay control Water Quality Analyzer

2-channel 4-20mA output Water Quality Sensor

Lugar de origem:

Chian

Marca:

KACISE

Certificação:

Número do modelo:

KMPW520

Contacte-nos

Solicite um orçamento

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Detalhes do produto

Condições de trabalho:

0–60 ℃, umidade ≤ 90%

Fonte de energia:

AC 220V

Tamanho:

223 mm × 200 mm × 120 mm

Peso:

1.51 kg

Método de instalação:

Instalação de parede

Nível de proteção:

IP65

Destacar:

7 inch touch screen display Water Quality Analyzer

6-channel relay control Water Quality Analyzer

2-channel 4-20mA output Water Quality Sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

Obtenha o melhor preço

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Obtenha o melhor preço

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

Obtenha o melhor preço

Medidor óptico DO em linha montado na parede com gama de medição de 0,00 a 20,00 mg/L, precisão ± 2% F.S. e resolução de 0,01 mg/L

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

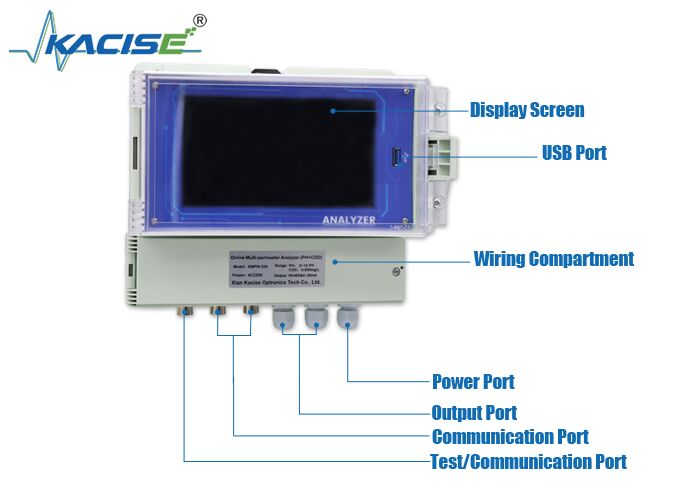

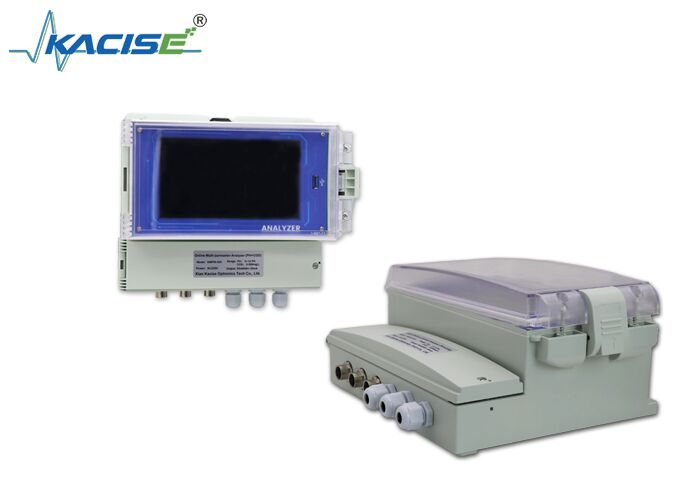

KMPW520 Multi-Parameter Water Quality Analyzer

Product Configuration

Electronic Cabinet x 1
Controller × 1
Sensors for the controller
User manual

Product Introduction

The KMPW520 Multi-Parameter Water Quality Analyzer is a next-generation monitoring system featuring digital sensors for flexible parameter combinations. Designed for industrial applications, it offers comprehensive control capabilities with multiple analog and relay channels, supporting Modbus-RTU protocol for remote data transmission.

Main Features

RTOS system for enhanced performance, stability, and real-time monitoring
7-inch touch screen with English menu and multi-parameter display
6 freely configurable data channels with selectable measurement units
6-channel relay control with high/low alarm settings
2-channel 4-20mA analog output with adjustable ranges

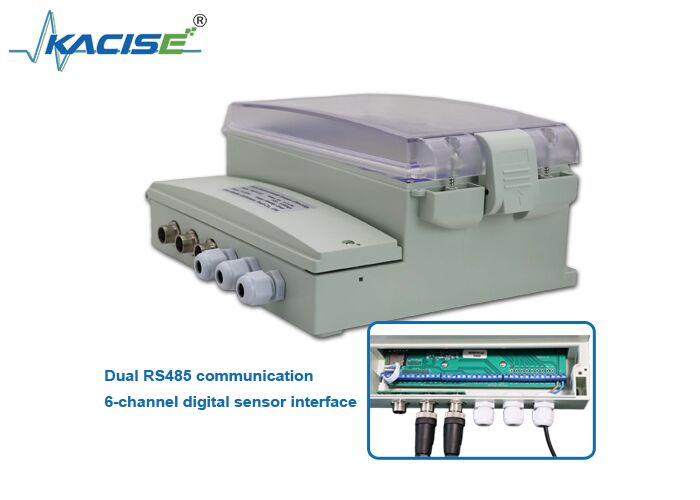

2-channel RS-485 digital interface supporting MODBUS-RTU protocol
Sensor calibration and configuration tools including factory reset
Data logging to TF card (up to 32GB) and USB export capability
Password protection and dual interface themes
Historical data visualization with curves and records

Technical Specifications

Measurement Parameters:

Temperature, PH, ORP, conductivity, TDS, salinity, dissolved oxygen, residual chlorine, dissolved ozone, turbidity, TSS, sludge concentration, hardness, ion concentration, Resistivity, COD, BOD, etc.

Parameter Combinations:

Maximum 6 parameters in free combination (examples: PH+ORP+conductivity+DO+residual chlorine+turbidity)

Specification	Details
Power Supply	AC 220V
Dimensions	223mm × 200mm × 120mm
Weight	1.51kg
Installation	Wall-mounted
Operating Conditions	0-60℃, humidity ≤90%
Protection Level	IP65
Input Interface	6-channel RS485 with 12V power supply (1A total capacity)
Analog Output	2-channel 4-20mA (750Ω load capacity per channel)
Relay Control	6 channels (3A load capacity per channel)
Digital Output	2-channel RS485 (Modbus-RTU protocol)
Display	7.0-inch LCD (800×480 resolution), capacitive touch
