Name: Proline Promass S 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass S 500
Price: 2,540.00 USD
Availability: InStock

Para casa > produtos > Medidor de fluxo eletromagnético >

Proline Promass S 500 Coriolis flowmeter

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Número do modelo:

Prolina Promass S 500

Contacte-nos

Solicite um orçamento

Proline Promass S 500 Coriolis flowmeter

Detalhes do produto

Faixa de medição:

0 a 70 000 kg/h (0 a 2570 lb/min)

Máx. pressão do processo:

PN 40, classe 150, 20K

Faixa de temperatura média:

¥50 a +150 °C (¥58 a +302 °F)

Transmissor que abriga o material:

AlSi10Mg, revestido; Policarbonato

Autorizações de zonas perigosas:

ATEX, IECEx, CCSAus, NEPSI, INMETRO, EAC, KC

Segurança do produto:

Marcação CE, marcação C, marcação EAC

Destacar:

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Promass S 300 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass P 500 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass Q 300 Coriolis flowmeter

Obtenha o melhor preço

Proline t-mass F 500 thermal mass flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

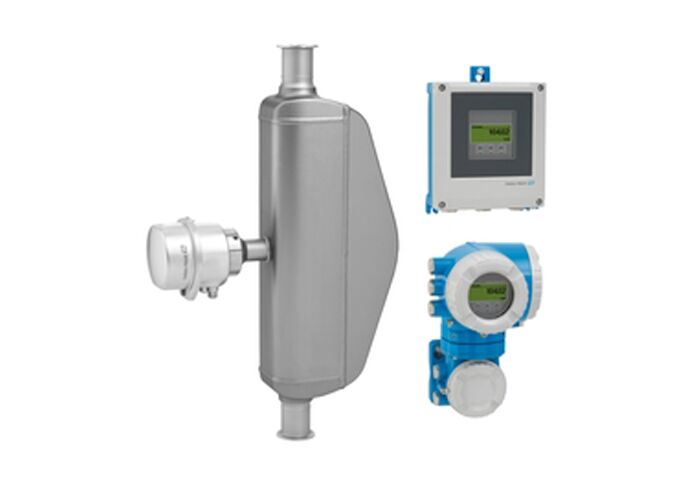

Proline Promass S 500 Coriolis Flowmeter

Advanced Coriolis flowmeter designed for hygienic applications in the food and beverage industry, featuring optimal cleanability and self-drainable single-tube system.

Key Specifications

Max. Measurement Error

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

-50 to +150 °C (-58 to +302 °F)

Max. Process Pressure

PN 40, Class 150, 20K

Field of Application

Designed for hygienic applications in the food and beverage industry requiring optimal cleanability. The self-drainable single-tube system ensures careful fluid treatment with maximum installation flexibility and operational safety.

Key Benefits

Increased process safety with easily cleanable, fully self-drainable tube design
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os and Ethernet
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Features

Sensor Features: Large range of hygienic process connections, 3-A and EHEDG conform, fast recovery from CIP/SIP, IP69 protection.

Transmitter Features: Remote version with up to 4 I/Os, backlit display with touch control, WLAN access, standard cable between sensor and transmitter.

Additional Specifications

Nominal Diameter

DN 8 to 50 (⅜ to 2")

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Ambient Temperature

Standard: -40 to +60 °C
Option: -50 to +60 °C

Certifications & Approvals

ATEX IECEx cCSAus NEPSI INMETRO EAC KC CE 3-A EHEDG cGMP PED CRN
