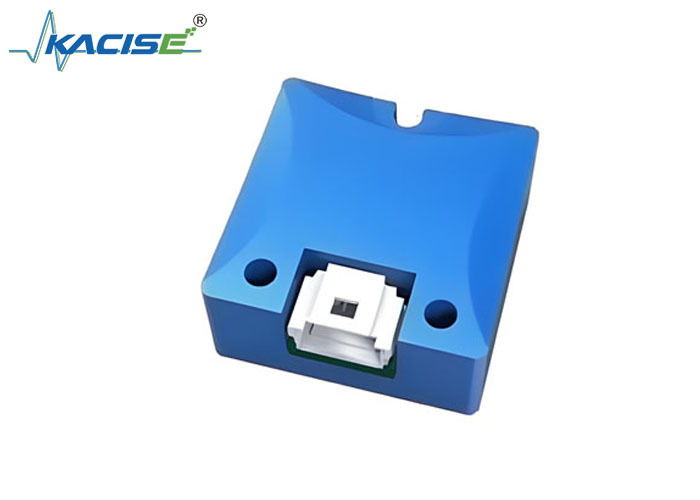

Name: KSIMU010M High-Performance 6-Axis IMU Sensor 100Hz Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSIMU010M
Price: 478.00 USD
Availability: InStock

Para casa > produtos > Sensor do acelerômetro >

KSIMU010M High-Performance 6-Axis IMU Sensor 100Hz Output

6-axis IMU sensor 100Hz output

high-performance accelerometer sensor

IMU sensor with warranty

Lugar de origem:

China

Marca:

kacise

Certificação:

Número do modelo:

KSIMU010M

Contacte-nos

Solicite um orçamento

KSIMU010M High-Performance 6-Axis IMU Sensor 100Hz Output

Detalhes do produto

Tensão operacional:

5 VDC

Consumo de energia:

0,5 W

Tamanho:

22,4 * 22,4 * 9mm

Peso:

<10g

Temperatura operacional:

-40 ° C ~ +85 ° C.

Destacar:

6-axis IMU sensor 100Hz output

high-performance accelerometer sensor

IMU sensor with warranty

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias de trabalho

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Obtenha o melhor preço

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Obtenha o melhor preço

Monitorização de vibrações de alto desempenho com detector de acelerômetro Ф25.4mm X30mm

Obtenha o melhor preço

Acelerômetros de quartzo para unidades de controlo por satélite com Bias ≤ 5 mg e Range = ± 20 g

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

KSIMU010M High-performance IMU

Product Attributes

Attribute	Value
Operating voltage	5 VDC
Power consumption	0.5 W
Size	22.4 * 22.4 * 9mm
Weight	< 10g
Operating temperature	-40°C~ +85°C

Product Description

The KSIMU010M is a durable, industrial-grade high-performance Inertial Measurement Unit (IMU) based on MEMS accelerometers and gyroscopes, offering a highly cost-effective solution for various applications.

Key Features

Precision-calibrated 6-axis inertial system
3-axis gyroscope and 3-axis accelerometer output
Data output rate: 100 Hz (optional 1000 Hz)
Measurement range: Gyro ±500 °/s, Accelerometer ±16g
Bias instability: Gyroscope 2 °/h, Accelerometer 0.1 mg
Compact size: 22.4 * 22.4 * 9.0 mm
Lightweight: <10 g
Wide temperature range: -40 ºC to +85 ºC

Application Areas

Anti-vibration and posture control in industrial applications
Automation machinery
Robot control
Platform stability and control
Instrumentation

Compact and lightweight, the KSIMU010M features an ultra-durable aluminum alloy housing, ensuring high reliability even in harsh environments. It has been widely used in dynamic control and attitude systems including unmanned aerial vehicles (UAVs), remotely operated vehicles (ROVs), smart agriculture, machinery control, platform stabilization, AGVs, and robotics.

Technical Specifications

Item	Gyro	Acc	Note
IMU Accuracy
Range: X, Y, Z	±500°/s	±16g
Bias Instability	2°/h	20μg	Allan
Random Walk	0.15°/√h	0.025m/s/√h
Bias Stability	10°/h	0.5mg	10s average (25℃, normal temp.)
Scale Factor Nonlinearity	200ppm	200ppm	±1g
Cross Coupling	200ppm	200ppm
Bandwidth	200Hz
Update Rate	100Hz	1000Hz configurable
Electrical Characteristics
Operating voltage	5 VDC
Power consumption	0.5 W
Interface	LVTTL		115200~921600bps configurable
Structural Features
Size	22.4 * 22.4 * 9mm
Weight	< 10g
Environmental Reliability
Operating temperature	-40°C~ +85°C
Storage temperature	-55°C ~ +105°C
Random vibration	6.06g (20-2000Hz)
Shock	1000g / 0.5ms
