Name: FLXA202 Analyzer 2-Wire Dual Channel Transmitter with 24VDC Loop-Powered 4-20mA HART Communication and Dual Sensor Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FLXA202
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > sensor da qualidade de água >

FLXA202 Analyzer 2-Wire Dual Channel Transmitter with 24VDC Loop-Powered 4-20mA HART Communication and Dual Sensor Measurement

24VDC Loop-Powered FLXA202 Analyzer

4-20mA HART Communication 2-Wire Dual Channel Transmitter

Dual Sensor Measurement Water Quality Sensor

Marca:

Yokogawa

Número do modelo:

FLXA202

Contacte-nos

Solicite um orçamento

FLXA202 Analyzer 2-Wire Dual Channel Transmitter with 24VDC Loop-Powered 4-20mA HART Communication and Dual Sensor Measurement

Detalhes do produto

Classificação de área:

Classe de propósito geral I Div I Class I Div II

Fonte de energia:

24vdc montes de loop (2 fios)

Comunicação:

4-20mA, Hart

Destacar:

24VDC Loop-Powered FLXA202 Analyzer

4-20mA HART Communication 2-Wire Dual Channel Transmitter

Dual Sensor Measurement Water Quality Sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenha o melhor preço

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenha o melhor preço

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenha o melhor preço

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenha o melhor preço

Contacte-nos

86--17719566736

Contacte agora

Descrição do produto

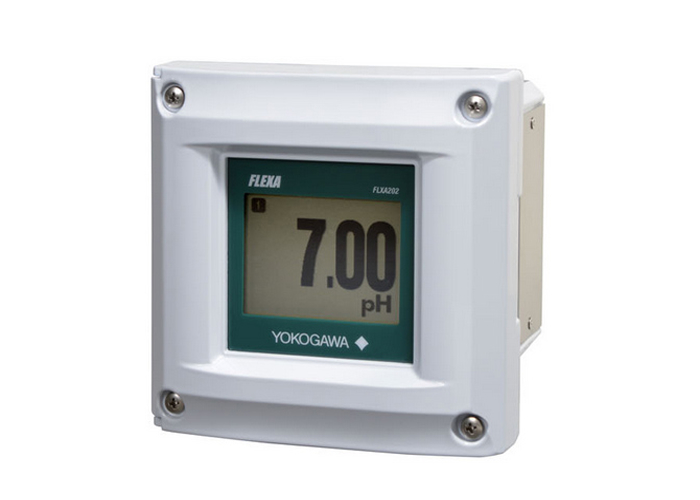

2-Wire Dual Channel Transmitter/Analyzer FLXA202

The FLEXA™ series analyzers are modular-designed analyzers used for continuous online measurements in industrial installations. They offer single or dual sensor measurement, making them the most flexible 2-wire analyzer available.

With the FLXA202, there is no need for multiple analyzers, since it is easily scalable at the site location by swapping the internal measurement module to what is needed, giving you more flexibility and optimizing your OPEX.

About OpreX

OpreX is the comprehensive brand for Yokogawa's industrial automation (IA) and control business and stands for excellence in the related technology and solutions. It consists of categories and families under each category. This product belongs to the OpreX Analyzers family that is aligned under the OpreX Measurement category.

Main Features

Support of Up to Two Sensors

Through the installation of up to two sensors, FLXA202 realizes interruption-free measurement even during maintenance. For dual sensor measurement, the sensor modules must be the same parameter - pH/ORP and pH/ORP, SC and SC, and DO and DO. Dual sensor measurement offers additional functionalities including:

Variety of calculated data from the two measuring parameters
Option to program the analyzer as a redundant system

Advanced Functions

With the FLXA202, one analyzer can accept any of four types of measurements: pH/ORP, Contacting Conductivity (SC), Inductive Conductivity (ISC) and Dissolved Oxygen (DO) Sensors with self-diagnostics capabilities. Additional functions include:

Continuous measurement of sensor impedance, asymmetric potential, and slope
Continuous monitoring for electrode contamination/damage, burnout, and decline in measurement liquid level (ex. pH Analyzer)
Online Sensor Wellness checking for predictive maintenance

Clear Touch Panel Display for Improved Operability

The FLEXA™ series analyzer provides improved operability with intuitive touchscreen operation, featuring:

Clear display with user-friendly indication in 12 languages
Quick setup menu for immediate measurement
Display of sensor status and estimated maintenance time
Interactive screen housed in robust aluminum die-cast housing (FLXA202)

Modular Design for Increased Scalability

The FLEXA™ series analyzer features a modular design with replaceable sensor modules, enabling the construction of a variety of systems. Users can:

Opt to do without a display
Select the case material (plastic or stainless steel)

Specifications

Model	FLXA202
Area Classification	General Purpose Class I Div I Class I Div II
Power Supply	24VDC loop-powered (2-wire)
Communication	4-20mA, HART
Contacts and Relays	None
