Name: Dosimass Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Dosimas Coriolis
Price: 2,540.00 USD
Availability: InStock

Para casa > produtos > Medidor de fluxo eletromagnético >

Dosimass Coriolis flowmeter

Dosimass Coriolis flowmeter with warranty

Coriolis flowmeter for industrial use

Electromagnetic flow meter high accuracy

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Número do modelo:

Dosimas Coriolis

Contacte-nos

Solicite um orçamento

Detalhes do produto

Variaveis medidos:

Fluxo de massa, densidade, temperatura, fluxo de volume

Faixa de medição:

0 a 45.000 kg/h (0 a 1.654 lb/min)

Máx. pressão do processo:

PN 40

Faixa de temperatura média:

–40 a +130 °C (–40 a +266 °F)150 °C permitido por 1 h

Faixa de temperatura ambiente:

–20 a +60 °C (–4 a +140 °F)

Destacar:

Dosimass Coriolis flowmeter with warranty

Coriolis flowmeter for industrial use

Electromagnetic flow meter high accuracy

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Promass S 300 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass P 500 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass Q 300 Coriolis flowmeter

Obtenha o melhor preço

Proline t-mass F 500 thermal mass flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

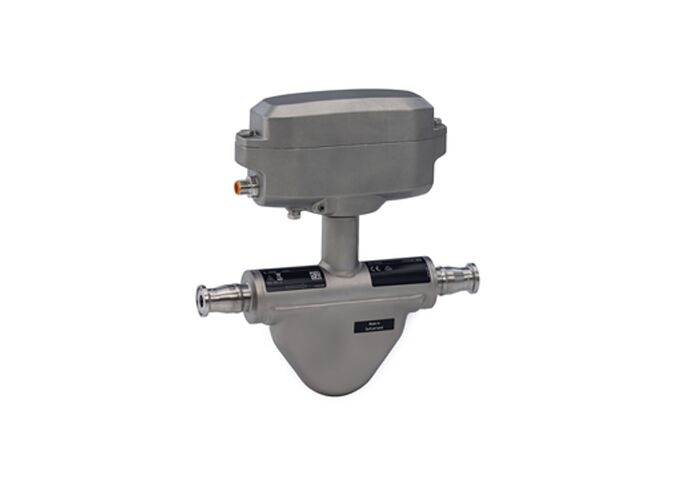

Dosimass Coriolis Flowmeter

The compact sensor with an ultra-compact transmitter for measurement of liquids with diverse properties in continuous process control & batching applications.

Field of Application

Dosimass is designed for filling and bottling applications in Food & Beverage and Life Sciences. In space-constrained applications, Dosimass is the preferred choice for system integrators, skid builders and equipment manufacturers. The flowmeter measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability, independent of physical fluid properties such as viscosity or density.

Key Benefits

High and stable filling performance with exceptional measuring accuracy and repeatability in shortest filling times
IO-Link enables real-time digital communication for easier commissioning and continuous data availability
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Compact design for optimized machine footprint
Integrated batching functionality for comprehensive filling process management
Global compliance with industry standards: EHEDG, 3-A, FCM, cGMP
SIP and CIP cleanable

Technical Specifications

Measuring Principle

Coriolis

Measured Variables

Mass flow, density, temperature, volume flow

Max. Measurement Error

Mass flow (liquid): ±0.15%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 45,000 kg/h (0 to 1,654 lb/min)

Medium Temperature

-40 to +130 °C (-40 to +266 °F)
150 °C allowed for 1 hour

Max. Process Pressure

PN 40

Ambient Temperature

-20 to +60 °C (-4 to +140 °F)

Nominal Diameter

DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂)

Degree of Protection

IP67, type 4X enclosure

Materials & Construction

Component	Material Specifications
Measuring Tube	1.4435 (316/316L) - DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈) 1.4539 (904L) - DN 8 to 40 mm (³⁄₈ to 1½)
Process Connection	1.4435 (316/316L) - DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈) 1.4539 (904L) - DN 8 to 40 mm (³⁄₈ to 1½)
Sensor Housing	Stainless steel, 1.4404 (316/316L) - DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈) Stainless steel, 1.4301 (304) - DN 8 to 40 mm (³⁄₈ to 1½)
Transmitter Housing	Stainless steel, 1.4409 (CF3M)

Electronics & Communication

Outputs

Pulse/frequency/switch output (passive)

Inputs

None

Digital Communication

Modbus RS485, IO-Link

Power Supply

DC 20 to 30 V

Display/Operation

No local operation
Configuration via operating tools possible

Certifications & Approvals

Hazardous Area: ATEX, UL, UK Ex
Other Approvals: 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, 3-A
Product Safety: CE
