Name: Proline Promass P 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass P 300
Price: 2,540.00 USD
Availability: InStock

Para casa > produtos > Medidor de fluxo eletromagnético >

Proline Promass P 300 Coriolis flowmeter

Proline Promass P 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Número do modelo:

Prolina Promass P 300

Contacte-nos

Solicite um orçamento

Proline Promass P 300 Coriolis flowmeter

Detalhes do produto

Faixa de medição:

0 a 70 000 kg/h (0 a 2570 lb/min)

Máx. pressão do processo:

PN 40, classe 150, 20K

Faixa de temperatura média:

Padrão: –50 a +150 °C (–58 a +302 °F)

Sensor que abriga o material:

1.4301 (304), resistente à corrosão

Transmissor que abriga o material:

AlSi10Mg, revestido; aço inoxidável para design de transmissor higiênico

Destacar:

Proline Promass P 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Promass S 300 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass P 500 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass Q 300 Coriolis flowmeter

Obtenha o melhor preço

Proline t-mass F 500 thermal mass flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

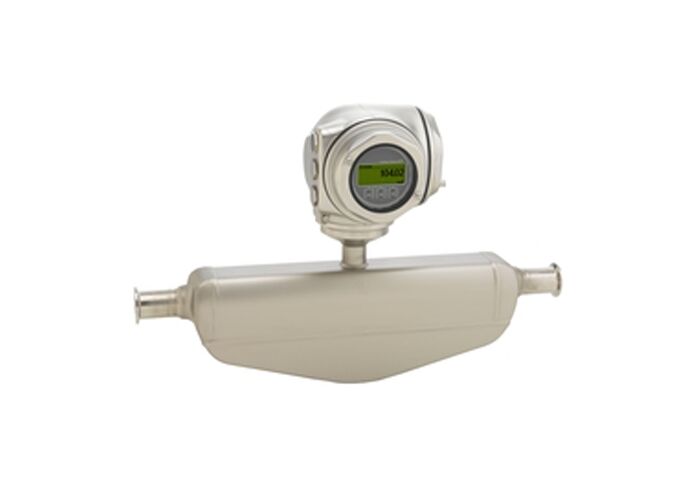

Proline Promass P 300 Coriolis Flowmeter

Specialist for life sciences with a compact, easily accessible transmitter dedicated to applications under sterile conditions.

Field of Application

Promass P is the specialist for sterile processes in the life sciences industry, dedicated to biotech applications requiring highest compliance with guidelines and regulations. With its compact transmitter, it offers high flexibility in operation and system integration.

Key Benefits

Highest process quality - fully compliant to industry requirements
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no inlet/outlet run requirements
Full access to process and diagnostic information
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Coriolis

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Max. Measurement Error

Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Nominal Diameter Range

DN 8 to 50 (⅜ to 2")

Max. Process Pressure

PN 40, Class 150, 20K

Medium Temperature

Standard: -50 to +150 °C (-58 to +302 °F)
Option: -50 to +205 °C (-58 to +401 °F)

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)
Option: -50 to +60 °C (-58 to +140 °F)

Device Properties

ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Inputs & Outputs

Outputs: 3 outputs including 4-20 mA HART, WirelessHART, pulse/frequency/switch output, relay output
Inputs: Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus NEPSI INMETRO EAC UK Ex KC CE C-tick PED CRN 3-A EHEDG ASME BPE ISPE cGMP
