Name: Proline Promass P 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass P 500
Price: 2,540.00 USD
Availability: InStock

Para casa > produtos > Medidor de fluxo eletromagnético >

Proline Promass P 500 Coriolis flowmeter

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Número do modelo:

Prolina Promass P 500

Contacte-nos

Solicite um orçamento

Proline Promass P 500 Coriolis flowmeter

Detalhes do produto

Variaveis medidos:

Fluxo de massa, densidade, temperatura, fluxo de volume, fluxo de volume corrigido, densidade de ref

Erro de medida do máximo:

Massa fl±0,10% Densidade (líquido): ±0,0005 g/cm

Faixa de medição:

0 a 70 000 kg/h (0 a 2570 lb/min)

Máx. pressão do processo:

PN 40, classe 150, 20K

Faixa de temperatura média:

Padrão: –50 a +150 °C (–58 a +302 °F)Opção: –50 a +205 °C (–58 a +401 °F)

、:

、

Destacar:

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Promass S 300 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass P 500 Coriolis flowmeter

Obtenha o melhor preço

Proline Promass Q 300 Coriolis flowmeter

Obtenha o melhor preço

Proline t-mass F 500 thermal mass flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

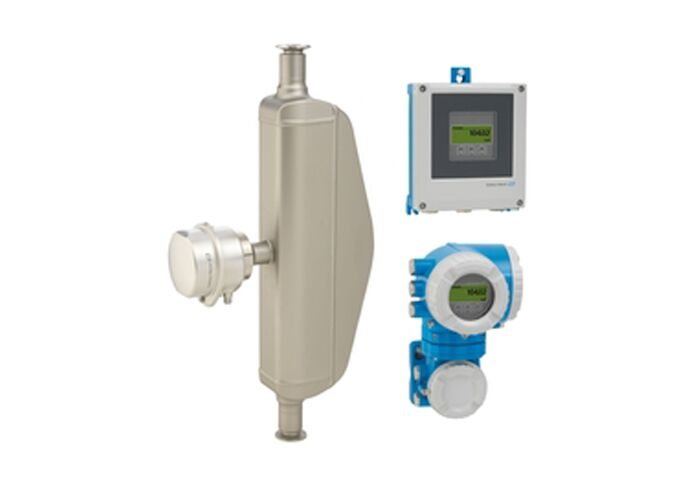

Proline Promass P 500 Coriolis Flowmeter

The Promass P 500 is a specialized Coriolis flowmeter designed for sterile processes in the life sciences industry. This remote version with up to 4 I/Os delivers exceptional accuracy and compliance for demanding biotech applications.

Key Applications

Specialist for sterile processes in life sciences, dedicated to applications requiring highest compliance with industry guidelines and regulations.

Technical Specifications

Maximum Measurement Error

Mass flow (liquid): ±0.10%

Volume flow (liquid): ±0.10%

Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

Standard: -50 to +150 °C (-58 to +302 °F)

Option: -50 to +205 °C (-58 to +401 °F)

Maximum Process Pressure

PN 40, Class 150, 20K

Device Features

Sensor Features

ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP processes
Space-saving installation with no inlet/outlet run requirements

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Numerous freely combinable I/Os and fieldbuses
Integrated verification with Heartbeat Technology

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Materials & Construction

Component	Material
Measuring Tube	1.4435 (316L)
Connection	1.4435 (316L); 1.4404 (316/316L)
Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Environmental Specifications

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)

Option: -50 to +60 °C (-58 to +140 °F)

Degree of Protection

Sensor remote version: IP66/67, type 4X enclosure

Option: IP69

Communication & I/O

Outputs

4-20 mA HART (active/passive), 4-20 mA WirelessHART, 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs

Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, applicable per IEC 61511
Metrological: ISO/IEC 17025 calibration, ISO 9001:2015 compliance
Pressure: PED, CRN
Material: 3.1 material certificate
Hygienic: 3-A, EHEDG, ASME BPE, ISPE, cGMP

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)
