Name: KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FSFX-S
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > Environmental Monitoring >

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options

Lugar de origem:

CHINA

Marca:

KACISE

Certificação:

Número do modelo:

KQS-FSFX-S

Contacte-nos

Solicite um orçamento

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options

Detalhes do produto

Tipo de sensor:

Anemômetro de três xícaras (velocidade do vento) + cata-vento de precisão (direção do vento)

Material:

Liga de alumínio usinada com precisão, copos ABS importados

Opções de saída:

RS485, RS232, 4-20mA, 0-20mA, 0-5V, 0-2,5V, 1-5V, pulso

Grau de proteção:

IP64

Começando o ponto inicial:

<=0,5m/s

Peso:

680g líquidos, 1280g com embalagem

Termos de pagamento e envio

Quantidade de ordem mínima

1PCS

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5 a 8 dias úteis

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenha o melhor preço

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenha o melhor preço

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenha o melhor preço

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

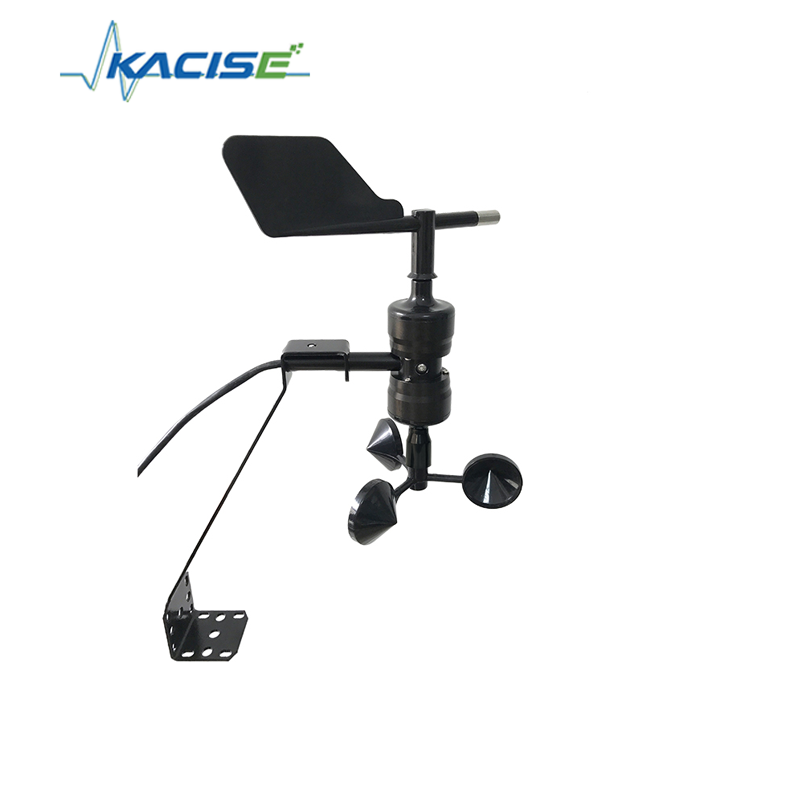

KQS-FSFX-S Integrated Wind Speed and Direction Sensor (Model S)

The KQS-FSFX-S is a highly integrated product combining wind speed and direction measurement. The wind speed section uses a traditional three-cup anemometer structure with imported ABS material cups for high strength and low starting threshold. The wind direction section uses a precision angle sensor with a low-inertia wind vane responding to wind direction changes.

Widely used in meteorology, marine, environment, airports, ports, laboratories, industry, agriculture, and transportation.

Product Features

Highly integrated wind speed and direction measurement
Precision-machined aluminum alloy components for high strength
Three-cup anemometer with low starting threshold ≤0.5 m/s
Precision angle sensor with no dead angles
Multiple output signal options (RS485/RS232/current/voltage/pulse)
Supports Modbus-RTU and ASCII protocols
Wide operating temperature range -35°C to 60°C
IP64 protection rating

Technical Parameters

Parameter	Specification
Accuracy (Wind Speed)	±(0.3+0.03V) m/s (V = real-time wind speed)
Accuracy (Wind Direction)	±3°
Resolution (Wind Speed)	0.1 m/s
Resolution (Wind Direction)	1°
Starting Wind Speed	≤0.5 m/s
Max Power Consumption	0.9W
Load Capacity (DC12V, current output)	≤350Ω
Load Capacity (DC24V, current output)	≤900Ω
Load Capacity (voltage output)	≥1KΩ
Operating Temperature	-35℃～60℃
Humidity	≤100%RH, non-condensing
Protection Rating	IP64
Net Weight	680g
Package Weight	1280g (incl. packaging and sensor cable)
Cable Rating	Rated Voltage: 300V, 80℃

Measurement Range

Parameter	Range
Wind Speed	□ 0～45 m/s (current/voltage output) □ 0～70 m/s (pulse/485/232 output) □ Custom
Wind Direction	0-359°

Structure Dimensions
