Name: KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-PWS
Price: 5,000.00 USD
Availability: InStock

Para casa > produtos > Environmental Monitoring >

KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s

Lugar de origem:

China

Marca:

KACISE

Certificação:

Número do modelo:

KQS-PWS

Contacte-nos

Solicite um orçamento

KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s

Detalhes do produto

Faixa de medição:

0-1 / 0-3 / 0-5 / 0-10 / 0-15 / 0-20 / 0-30 m/s (selecionável)

Intervalo de volume de ar:

0-9.999.999 m³/h

Precisão:

±(0,2 + 2%FS) m/s

Resolução:

0,01m/s

Velocidade inicial do vento:

≤ 0,1m/s

Saída de sinal:

RS485 (Modbus/ASCII/SERVIDOR) / 0-5 V / 4-20 mA

Termos de pagamento e envio

Quantidade de ordem mínima

1 peça

Detalhes da embalagem

Cada unidade possui caixa individual, todas as caixas embaladas em embalagens padrão ou conforme sol

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociáveis

PRODUTOS CONEXOS

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenha o melhor preço

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenha o melhor preço

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenha o melhor preço

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

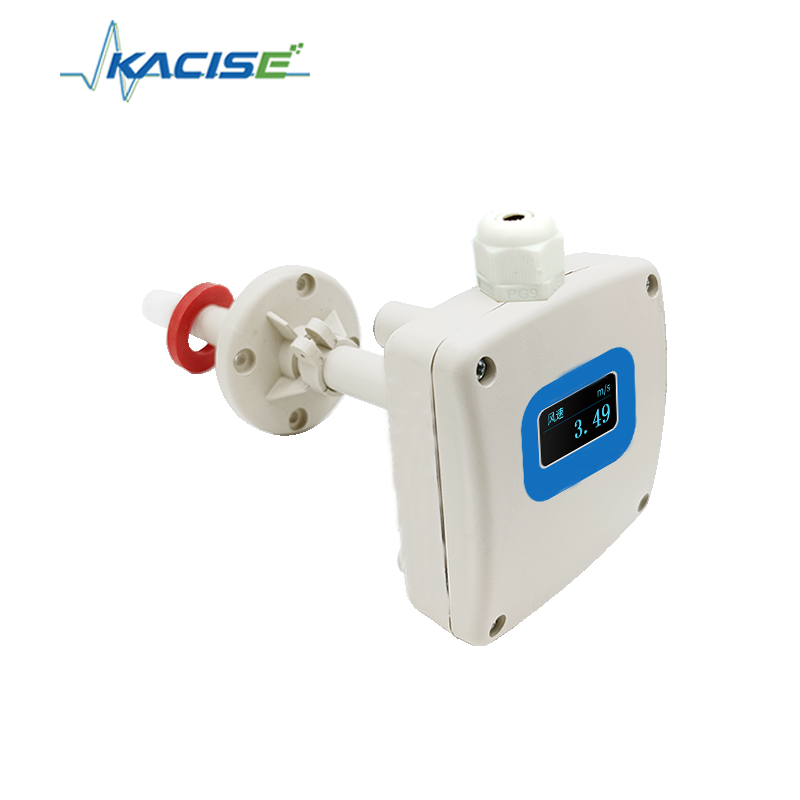

KQS-PWS Duct Wind Speed Sensor

The KQS-PWS duct-type wind speed sensor features a housing made of high-temperature and corrosion-resistant materials. Based on the thermal dissipation principle, it is capable of detecting even very low wind speeds while maintaining stable and reliable performance in harsh environments.

Compared with traditional wind speed sensors, it provides better stability and enables faster, more accurate measurement of micro airflows. Linear compensation and temperature compensation are automatically implemented, ensuring high accuracy and resolution. The sensor has no zero drift and excellent long-term stability, offering a high cost-performance ratio. Additionally, this series can withstand instantaneous high wind speeds and high wind pressure.

Product Features

Well-designed, compact and aesthetically pleasing structure, small in size, easy to carry, and simple to install
High measurement accuracy, wide measurement range, and strong stability
Strong corrosion resistance and weather resistance
Excellent dynamic response and strong anti-interference capability, ensuring accurate measurements
Low power consumption and long circuit lifespan, enabling long-term stable operation
Wide power supply range, with good signal linearity and long transmission distance

Technical Parameters

Item	Specification
Measurement range	□ 0-1 m/s □ 0-3 m/s □ 0-5 m/s □ 0-10 m/s □ 0-15 m/s □ 0-20 m/s □ 0-30 m/s
Air volume range	0-9,999,999 m³/h
Accuracy	±(0.2 + 2%FS) m/s
Resolution	0.01 m/s
Cross-sectional area range	0.01 - 100 m²
Starting wind speed	≤ 0.1 m/s
Sampling frequency	5 Hz
Power supply	DC 5-30 V (when powered at 5 V, cable must be 2×0.5 mm², length ≤ 5 m)
Signal output	RS485 (default Modbus/ASCII/SERVER)/0-5 V /4-20 mA
