KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Detalhes do produto

Faixa de medição:

0-45 m/s (saída analógica) / 0-70 m/s (saída digital/pulso)

Velocidade inicial do vento:

≤ 0,8m/s

Precisão:

±(0,5 + 0,02 V)m/s

Resolução:

0,1 m/s

Fonte de energia:

Ampla tensão de 5 V ou 9-30 V CC opcional

Saída de sinal:

4-20 mA / 0-20 mA, 0-2,5 V / 0-5 V / 1-5 V, RS485 / RS232 opcional

Termos de pagamento e envio

Quantidade de ordem mínima

1 peça

Detalhes da embalagem

Cada unidade possui caixa individual, todas as caixas embaladas em embalagens padrão ou conforme sol

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociáveis

PRODUTOS CONEXOS

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenha o melhor preço

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenha o melhor preço

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenha o melhor preço

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

KQS-FS1 Wind Speed Sensor

Product Overview

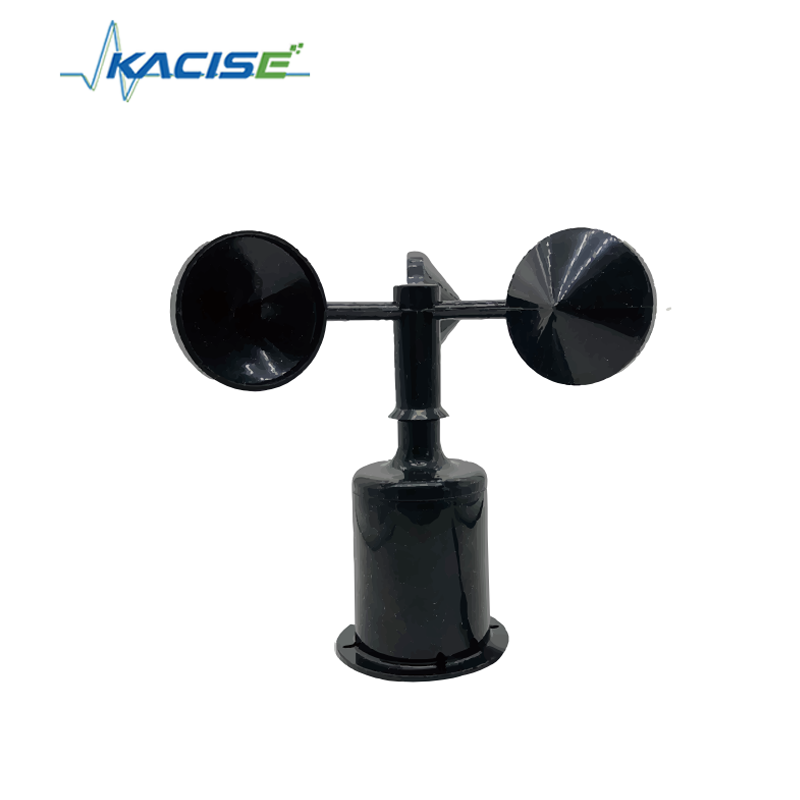

The KQS-FS1 wind speed sensor adopts a traditional three-cup anemometer structure. The wind cups are made of high-strength ABS material, providing excellent durability and low starting wind speed. The built-in signal processing unit can output corresponding wind speed signals according to user requirements, supporting RS485/RS232 communication, pulse output, voltage output, or current output.

This sensor is widely used in advertising barrier systems, meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation applications.

Product Features

Independently patented design and development; each sensor is calibrated in a wind tunnel
Uses high-quality bearings, ensuring low starting wind speed and stable performance
Easy to install, compatible with bottom or side cable outlet mounting

Technical Parameters

Item	Parameter
Measuring range	□ 0-45 m/s (current/voltage output) □ 0-70 m/s (pulse / RS485 / RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5V or optional 9-30V wide-voltage supply
Net weight	125 g
Signal output	Current: □ 4-20 mA / □ 0-20 mA Voltage: □ 0-2.5 V / □ 0-5 V / □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
