Name: Proline Prosonic Flow B 200 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Fluxo Prosônico B 200
Price: 892.00 USD
Availability: InStock

Para casa > produtos > medidor de fluxo ultrassônico >

Proline Prosonic Flow B 200 ultrasonic flowmeter

Proline Prosonic ultrasonic flowmeter

B 200 ultrasonic flow meter

industrial ultrasonic flowmeter with warranty

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Número do modelo:

Proline Fluxo Prosônico B 200

Contacte-nos

Solicite um orçamento

Proline Prosonic Flow B 200 ultrasonic flowmeter

Detalhes do produto

Transmissor que abriga o material:

AlSi10Mg, revestido; 1.4404 (316L)

Grau de proteção:

IP66/67, tipo cerco de 4X

Entradas:

Corrente de entrada 4‐20 mA (pasiva)

Uma comunicação de Digitas:

Hart

Autorizações de zonas perigosas:

ATEX, IECEx, cCSAus, NEPSI, INMETRO, JPN, EAC

Certificados de material:

3.1 material (peças molhadas)

Destacar:

Proline Prosonic ultrasonic flowmeter

B 200 ultrasonic flow meter

industrial ultrasonic flowmeter with warranty

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

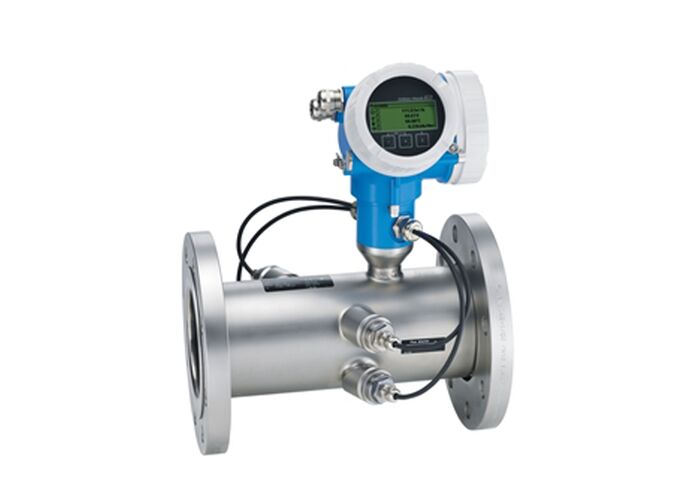

Proline Prosonic Flow B 200 Ultrasonic Flowmeter

The Proline Prosonic Flow B 200 is a specialized ultrasonic flowmeter designed for accurate and reliable measurement of wet biogas and digester gas, even under fluctuating process conditions.

Key Innovation

With unique integrated real-time methane fraction analysis, this device enables continuous measurement and monitoring of gas flow as well as gas quality. The measuring principle is unaffected by gas composition.

Field of Application

Inline flowmeter specifically designed for wet biogas and digester gas measurement under fluctuating process conditions. Enables efficient process control, energy balancing, and ensures compliance and process safety through Heartbeat Technology.

Key Benefits

Integrated real-time methane fraction measurement
Optimized for low pressure gas with specialized sensor design
No additional pressure loss - full bore design
Enhanced process transparency through diagnostic capability
Convenient device wiring with separate connection compartment
Safe operation - no need to open device due to display with touch control and background lighting
Integrated verification via Heartbeat Technology

Technical Specifications

Measuring Principle

Ultrasonic flow measurement

Device Properties

Multivariable device: flow, temperature and methane
Loop-powered technology
Robust dual-compartment housing
Worldwide approvals for plant safety

Performance Specifications

Parameter	Specification
Measuring Range (Standard)	1 to 30 m/s (3.28 to 98.4 ft/s)
Measuring Range (Option)	0.3 to 30 m/s (0.98 to 98.4 ft/s)
Medium Temperature Range	0 to +80 °C (+32 to +176 °F)
Maximum Process Pressure	11 bar a (159 psi a)
Process Pressure Range	0.7 to 11 bar a (10.2 to 159 psi a)

Measurement Accuracy

Volume Flow Type	Accuracy
Standard Volume Flow	±1.5% o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s) ±3% o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s)
Optional Volume Flow	±0.1% o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s) ±1.5% o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s)

Nominal Diameter Range

Single-path version: DN 50 (2"), DN 80 (3")
Two-path version: DN 100 to 200 (4 to 8")

Measured Variables

Volume flow, corrected volume flow, corrected methane volume flow, energy flow, methane fraction, calorific value, temperature

Wetted Materials

Sensor: 1.4404/1.4435 (316L)
Transducer: HNBR
Temperature sensor (option): AFM 34

Environmental Specifications

Parameter	Specification
Ambient Temperature (Carbon Steel)	-10 to +60 °C (+14 to +140 °F)
Ambient Temperature (Stainless Steel)	-40 to +60 °C (-40 to +140 °F)
Transmitter Housing Material	AlSi10Mg, coated; 1.4404 (316L)
Degree of Protection	IP66/67, type 4X enclosure

Electrical Specifications

Component	Specification
Display/Operation	4-line backlit display with touch control (operation from outside)
Outputs	4-20 mA HART (passive), 4-20 mA (passive), Pulse/frequency/switch output (passive)
Inputs	Current input 4-20 mA (passive)
Digital Communication	HART
Power Supply	Multiple configurations: DC 12-35V, DC 12-30V, DC 9-32V depending on output type

Certifications and Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, JPN, EAC
Metrological: Calibration performed on accredited facilities (ISO/IEC 17025)
Pressure: PED
Material: 3.1 material certificates (wetted parts)
