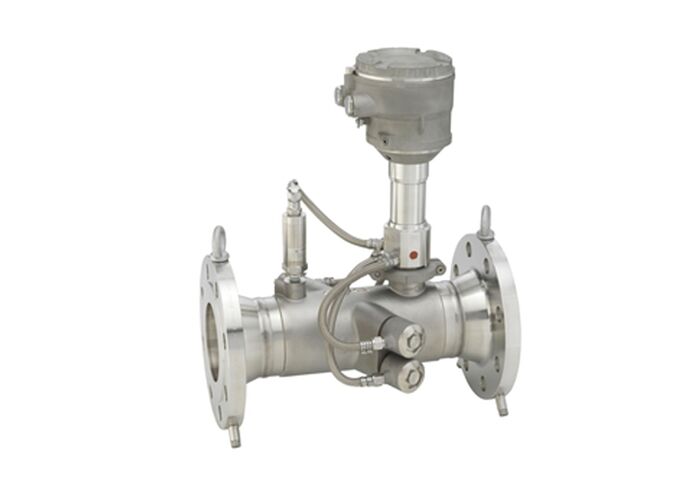

Name: Proline Prosonic Flow G 500 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Fluxo Prosônico G 500
Price: 892.00 USD
Availability: InStock

Para casa > produtos > medidor de fluxo ultrassônico >

Proline Prosonic Flow G 500 ultrasonic flowmeter

Proline Prosonic ultrasonic flowmeter

ultrasonic flow meter with warranty

Prosonic Flow G 500 meter

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Número do modelo:

Prolina Fluxo Prosônico G 500

Contacte-nos

Solicite um orçamento

Proline Prosonic Flow G 500 ultrasonic flowmeter

Detalhes do produto

Faixa de medição:

Gás: 0,3 m/s a 40 m/s

Máx. pressão do processo:

0,7 a 101 bar a (10,15 a 1464,88 psi a)

Faixa de temperatura média:

-50 a 150°C (-58 a +302°F)

Faixa de temperatura ambiente:

-40 a 60 °C(-40 a +140 °F)

Sensor que abriga o material:

Aço inoxidável, 1.4404(316/316L), 1.4408/1.4409 (CF3M)

Transmissor que abriga o material:

lSi10Mg, revestido; 1.4409 (CF3M) semelhante a 316L

Destacar:

Proline Prosonic ultrasonic flowmeter

ultrasonic flow meter with warranty

Prosonic Flow G 500 meter

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Proline Prosonic Flow G 500 Ultrasonic Flowmeter

Highly robust gas specialist for fluctuating process conditions as remote version with up to 4 I/Os. Flexible device with user-definable gas mixtures for demanding measuring tasks.

Field of Application

For a wide range of gas applications, Prosonic Flow G provides reliable flow measurement, even with wet gas and changing gas properties and compositions. Accurate measurement of natural and process gas in the chemical, oil, and gas industries.

Key Benefits

Flexible device with user-definable gas mixtures for demanding measuring tasks
Maximum reliability even with humid or wet gas - sensor design insensitive to condensate
High-performance process control - real-time pressure- and temperature-compensated values
Efficient solution - multivariable, no pressure loss
Full access to process and diagnostic information - numerous, freely combinable I/Os
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Measuring Principle

Ultrasonic flow measurement unaffected by gas composition

Technical Specifications

Measurement Accuracy

Measurement Type	Accuracy Range	Velocity Range
Volume Flow (Standard)	±1.0% to ±2% o.r.	0.3 to 40 m/s
Volume Flow (Optional Calibration)	±0.5% to ±1.0% o.r.	0.3 to 40 m/s
Corrected Volume Flow (Standard)	±1.2% to ±2.1% o.r.	0.3 to 40 m/s
Corrected Volume Flow (Optional Calibration)	±0.8% to ±1.2% o.r.	0.3 to 40 m/s
Sound Velocity	±0.2% o.r.	-

Operating Ranges

Parameter	Range
Gas Measuring Range	0.3 m/s to 40 m/s
Medium Temperature	-50 to 150 °C (-58 to +302°F)
Medium Temperature (with pressure cell)	-50 to 100 °C (-58 to +212°F)
Process Pressure	0.7 to 101 bar a (10.15 to 1464.88 psi a)
Ambient Temperature	-40 to 60 °C (-40 to +140 °F)

Nominal Diameter Range

DN 25 to 300 (1 to 12")

Measured Variables

Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass

Construction Materials

Component	Material
Measuring Tube	1.4408/1.4409 (CF3M)
Transducer	1.4404 (316, 316L, Titan Grade 2)
Sensor Housing	Stainless Steel, 1.4404 (316/316L), 1.4408/1.4409 (CF3M)
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Electrical & Communication

Outputs

4 outputs: 4-20 mA HART (active/passive), 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs

Status input, 4-20 mA input

Digital Communication

HART, Modbus RS485

Power Supply

AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC
Product Safety: CE, C-tick
Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511
Metrological: Calibration performed on accredited facilities (ISO/IEC 17025), Heartbeat Technology complies with ISO 9001:2015
Pressure: PED, CRN
Material: 3.1 material certificate, NACE MR0175/MR0103

Environmental Protection

Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, Type 4X enclosure

Display & Operation

4-line backlit display with Touch Control (operation from outside)
Configuration via local display and operating tools possible
