Prosonic Flow E Heat ultrasonic flowmeter

Prosonic ultrasonic flowmeter with warranty

Flow E Heat ultrasonic flow meter

industrial ultrasonic flowmeter for liquids

Lugar de origem:

Suíça

Marca:

Endress+Hauser

Certificação:

Contacte-nos

Solicite um orçamento

Prosonic Flow E Heat ultrasonic flowmeter

Detalhes do produto

Exposição/operação:

leitura direta de informações de status por meio de LEDs coloridos

Produtos:

Pulso/Frequência

Entradas:

Nenhum

Fonte de energia:

CC 19,2 a 28,8 V

Autorizações de zonas perigosas:

Nenhum

Segurança do produto:

Marcação CE, marcação C, marcação EAC

Destacar:

Prosonic ultrasonic flowmeter with warranty

Flow E Heat ultrasonic flow meter

industrial ultrasonic flowmeter for liquids

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Detalhes da embalagem

Cada unidade possui caixa individual e todas as caixas são embaladas em pacotes padrão ou solicitaçõ

Tempo de entrega

5-8 DIAS DE TRABALHO

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte

1000 peças/peças por semana negociável

PRODUTOS CONEXOS

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenha o melhor preço

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

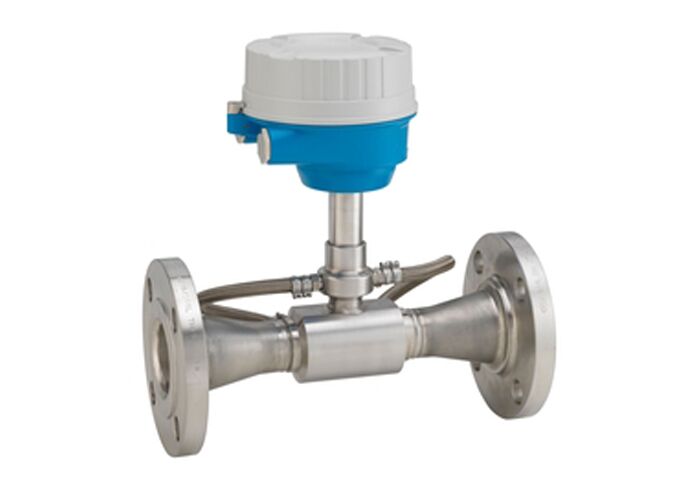

Prosonic Flow E Heat Ultrasonic Flowmeter

Industrial, certified heat flow sensor for improved energy consumption measurement. Full compliance with custody transfer regulations. Best choice for energy management of water (e.g., heating and cooling) across all industries.

Field of Application

Prosonic Flow E Heat is the perfect heat flow sensor for enhanced energy management throughout all industries. It offers recognized custody transfer approvals for heating and cooling applications and is optimized for flexible industrial use. The measuring principle is independent of pressure, density, temperature and conductivity.

Key Benefits

Full compliance with custody transfer regulations
Long-term stability - reliable sensor with robust industrial design
Energy and cost savings - optimized sensor for fully insulated pipes
Dependable flow measurement - high turndown
Effortless, safe operation - no commissioning needed, no unauthorized device access due to locked pulse output
Simple process indication - direct reading of status information via color LEDs
Increased reliability - comprehensive diagnostics

Technical Specifications

Measuring Principle	Ultrasonic flow
Nominal Diameter Range	DN 50 to 150 (2" to 6")
Measured Variables	Flow velocity, sound velocity
Max. Measurement Error	MID 004 accuracy class II (2%)
Measuring Range	0.025 to 5 m/s (0.02 to 16.4 ft/s) 0 to 6360 dm³/min (0 to 1680 gal/min)
Max. Process Pressure	PN 25/ ASME Cl. 150
Medium Temperature Range	0 to 150°C (32 to 302°F)
Ambient Temperature Range	-20 to 60°C (-4 to 140°F)

Materials & Construction

Wetted Materials	Measuring tube: 1.4301 (F304) Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1.4306 (F304L); 1.4307 (F304L); A105
Sensor Housing Material	Stainless steel
Transmitter Housing Material	Compact: AlSi10Mg, coated
Degree of Protection	Standard: IP66/67, Type 4X enclosure With opened housing: IP20, Type 1 enclosure

Electrical & Operational

Display/Operation	Direct reading of status information via color LEDs
Outputs	Pulse/Frequency
Inputs	None
Digital Communication	None
Power Supply	DC 19.2 to 28.8 V

Certifications & Approvals

CE C-Tick EAC PED

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
3.1 material certification
